Plot data as a bar chart

Source: R/plot_bar.R
plot_bar.Rd

Create a bar chart for grouped numeric values.

Usage

plot_bar(
  data,
  x,
  y,
  position = "dodge",
  facet_var = NULL,
  facet_scale = "free",
  facet_nrow = NULL,
  facet_ncol = NULL,
  color = NULL,
  flip = FALSE,
  reorder = FALSE,
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  caption = NULL,
  bar_size = 0.75,
  bar_color = "grey35",
  bar_alpha = 1,
  theme_set = theme_tscv(),
  theme_config = list(),
  ...
)

Arguments

data

A data.frame, tibble, or tsibble in long format.

x

Unquoted column in data used on the x-axis.

y

Unquoted column in data containing numeric values shown on the y-axis.

position

Character value defining the bar position. Common values are "dodge" and "stack".

facet_var

Optional unquoted column in data used for faceting.

facet_scale

Character value defining facet axis scaling. Common values are "free", "fixed", "free_x", and "free_y".

facet_nrow

Optional integer. Number of rows in the facet layout.

facet_ncol

Optional integer. Number of columns in the facet layout.

color

Optional unquoted column in data used to map bar fill color.

flip

Logical value. If TRUE, the plot is flipped using ggplot2::coord_flip().

reorder

Logical value. If TRUE, add tidytext::scale_x_reordered() for reordered facet labels.

title

Character value. Plot title.

subtitle

Character value. Plot subtitle.

xlab

Character value. Label for the x-axis.

ylab

Character value. Label for the y-axis.

caption

Character value. Plot caption.

bar_size

Numeric value defining the bar border line width.

bar_color

Character value defining the bar fill color. Ignored when color is supplied.

bar_alpha

Numeric value between 0 and 1 defining bar transparency.

theme_set

A complete ggplot2 theme.

theme_config

A named list with additional arguments passed to ggplot2::theme().

...

Currently not used.

Value

An object of class ggplot.

Details

plot_bar() is a convenience wrapper around ggplot2::geom_bar() with stat = "identity". It is intended for data that already contains summarized values, for example accuracy metrics, counts, or grouped summary statistics.

The arguments x, y, facet_var, and color are passed as unquoted column names.

If color is supplied, bar fill colors are mapped to that variable and bar_color is ignored. If color is not supplied, all bars are drawn using bar_color.

The argument position controls how bars are displayed when color is supplied. Common values are "dodge" and "stack".

If flip = TRUE, the x-axis and y-axis are swapped using ggplot2::coord_flip().

If reorder = TRUE, tidytext::scale_x_reordered() is added. This is useful when the x-axis has been reordered within facets with tidytext::reorder_within().

Additional theme settings can be supplied through theme_config. This should be a named list of arguments passed to ggplot2::theme().

See also

Other data visualization: plot_density(), plot_histogram(), plot_line(), plot_point(), plot_qq(), scale_color_tscv(), scale_fill_tscv(), theme_tscv(), tscv_cols(), tscv_pal()

Examples

library(dplyr)

context <- list(
  series_id = "series",
  value_id = "value",
  index_id = "index"
)

data <- M4_monthly_data |>
  filter(series %in% c("M23100", "M14395"))

stats <- summarise_stats(
  .data = data,
  context = context
)

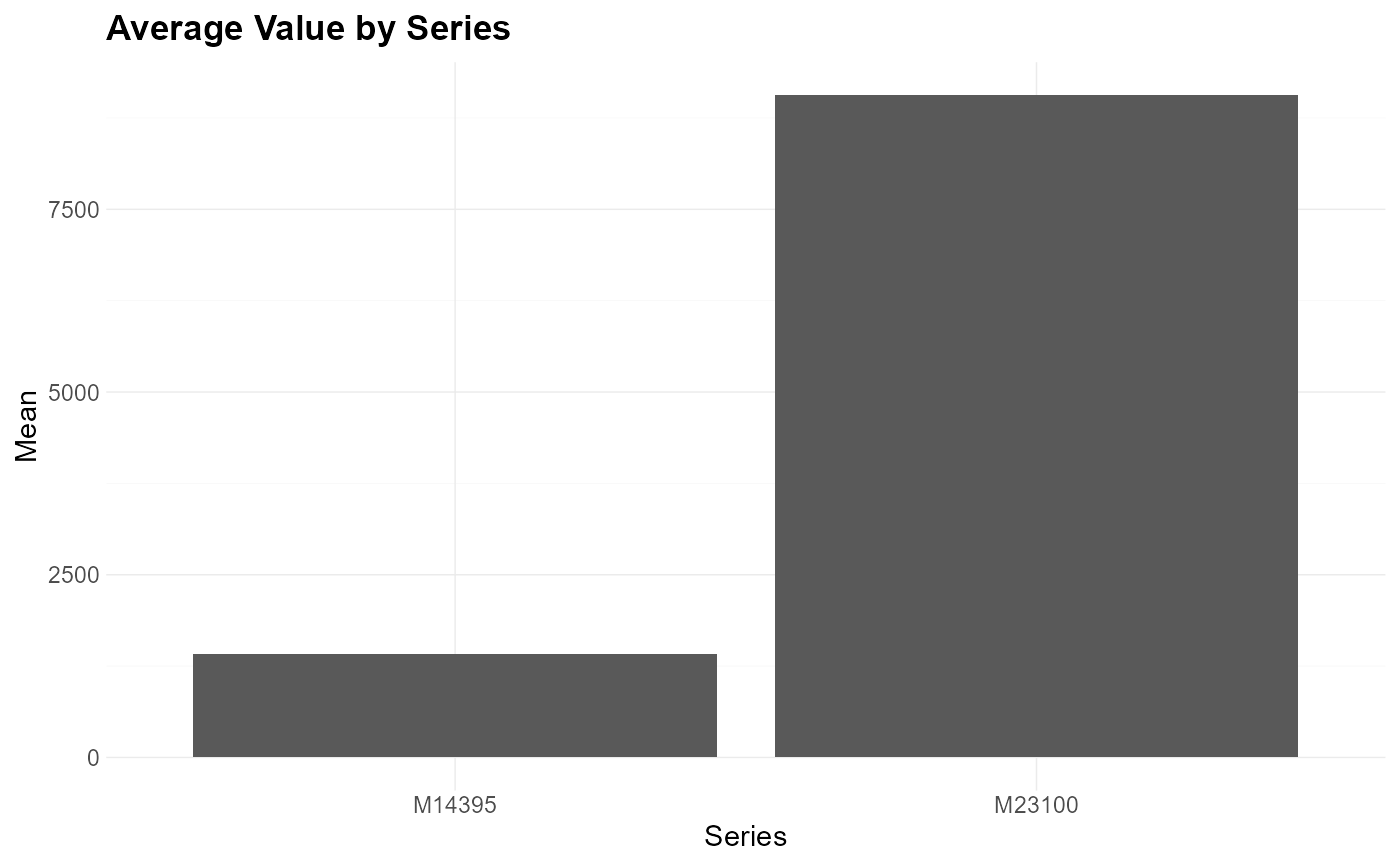

plot_bar(
  data = stats,
  x = series,
  y = mean,
  title = "Average Value by Series",
  xlab = "Series",
  ylab = "Mean"
)


acf_data <- estimate_acf(
  .data = data,
  context = context,
  lag_max = 12
)

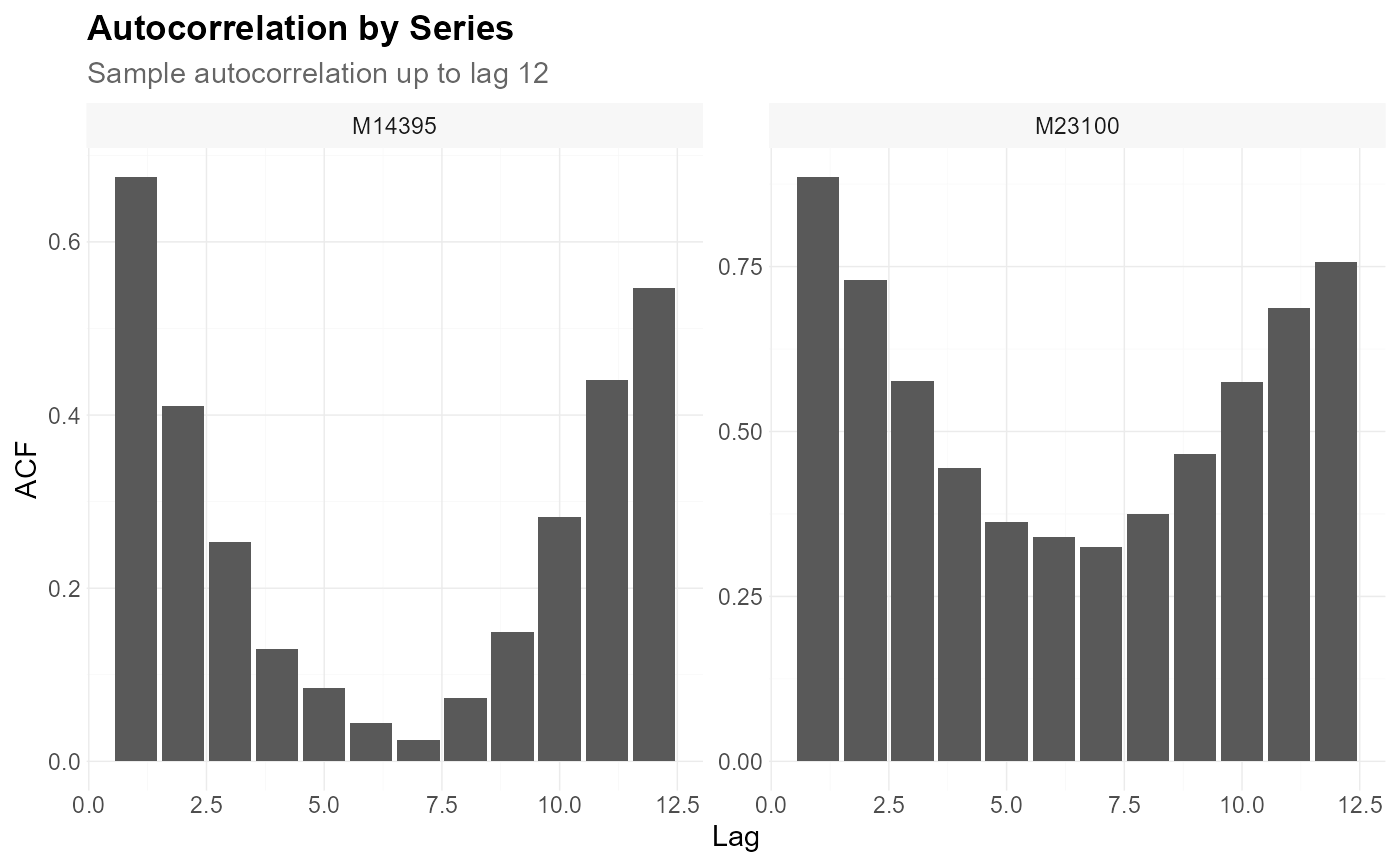

plot_bar(
  data = acf_data,
  x = lag,
  y = value,
  facet_var = series,
  title = "Autocorrelation by Series",
  subtitle = "Sample autocorrelation up to lag 12",
  xlab = "Lag",
  ylab = "ACF"
)
