Plot data as a line chart

Source: R/plot_line.R
plot_line.Rd

Create a line chart for one or more time series or grouped numeric variables.

Usage

plot_line(
  data,
  x,
  y,
  facet_var = NULL,
  facet_scale = "free",
  facet_nrow = NULL,
  facet_ncol = NULL,
  color = NULL,
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  caption = NULL,
  line_size = 0.75,
  line_type = "solid",
  line_color = "grey35",
  line_alpha = 1,
  theme_set = theme_tscv(),
  theme_config = list(),
  ...
)

Arguments

data

A data.frame, tibble, or tsibble in long format.

x

Unquoted column in data used on the x-axis.

y

Unquoted column in data containing numeric values shown on the y-axis.

facet_var

Optional unquoted column in data used for faceting.

facet_scale

Character value defining facet axis scaling. Common values are "free", "fixed", "free_x", and "free_y".

facet_nrow

Optional integer. Number of rows in the facet layout.

facet_ncol

Optional integer. Number of columns in the facet layout.

color

Optional unquoted column in data used to map line color.

title

Character value. Plot title.

subtitle

Character value. Plot subtitle.

xlab

Character value. Label for the x-axis.

ylab

Character value. Label for the y-axis.

caption

Character value. Plot caption.

line_size

Numeric value defining the line width.

line_type

Character or numeric value defining the line type.

line_color

Character value defining the line color. Ignored when color is supplied.

line_alpha

Numeric value between 0 and 1 defining line transparency.

theme_set

A complete ggplot2 theme.

theme_config

A named list with additional arguments passed to ggplot2::theme().

...

Currently not used.

Value

An object of class ggplot.

Details

plot_line() is a convenience wrapper around ggplot2::geom_line() for plotting data in long format. It supports optional grouping by color, optional faceting, and the default tscv theme.

The arguments x, y, facet_var, and color are passed as unquoted column names.

If color is supplied, line colors are mapped to that variable and line_color is ignored. If color is not supplied, all lines are drawn using line_color.

Additional theme settings can be supplied through theme_config. This should be a named list of arguments passed to ggplot2::theme().

See also

Other data visualization: plot_bar(), plot_density(), plot_histogram(), plot_point(), plot_qq(), scale_color_tscv(), scale_fill_tscv(), theme_tscv(), tscv_cols(), tscv_pal()

Examples

library(dplyr)

data <- M4_monthly_data |>
  filter(series %in% c("M23100", "M14395"))

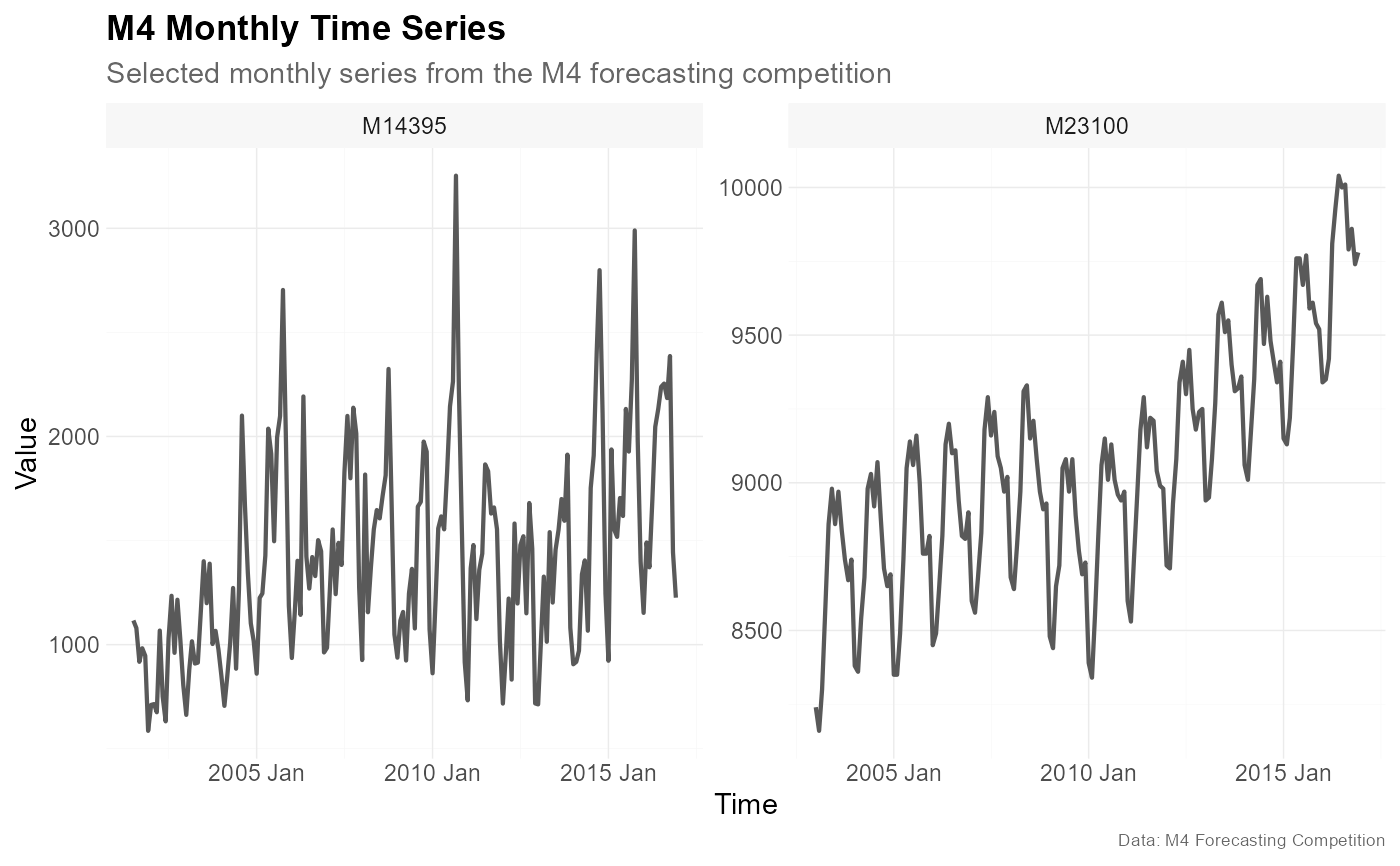

plot_line(
  data = data,
  x = index,
  y = value,
  facet_var = series,
  title = "M4 Monthly Time Series",
  subtitle = "Selected monthly series from the M4 forecasting competition",
  xlab = "Time",
  ylab = "Value",
  caption = "Data: M4 Forecasting Competition"
)


plot_line(
  data = data,
  x = index,
  y = value,
  color = series,
  title = "M4 Monthly Time Series",
  xlab = "Time",
  ylab = "Value",
  line_size = 1.5
)
